Welcome to this article, which is an in-depth guide to cardboard press machines, and if you’re looking for any information about cardboard press machines, you’ll find it here. So read on to learn more.

1. What is a cardboard press machine?

A cardboard press is a recycling machine designed to recycle common waste and scrap. According to the structure, it is divided into vertical cardboard presses and horizontal cardboard presses. Usually, vertical small cardboard presses are more popular in the market because it is cheaper.

Also known as a baler, a cardboard press machine is a large steel cavity with a platen that runs up and down to hold down the material inside. The press produces thick compressed bales, which are then collected by garbage collection companies, who send them to recycling companies for resale and reuse.

2. What is the principle of a cardboard press machine?

The cardboard press machine includes a bracket, the bracket is provided with a bottom plate and front and rear side baffles, a jack is installed on the bracket, a piston rod is arranged on the jack, and the right end of the piston rod is connected with a vertical top plate, and the top plate is The right side is connected with a push rod. For the slats, the gap between the adjacent push plates is the rope passing groove on the plate; the upper right corner of the bracket is provided with a pressing material upper baffle, and the left bracket is on the pressing material The left side of the baffle is provided with a feeding port; the brackets on the right side of the baffle are fixedly connected to the front and rear side rails respectively, and the gap between the adjacent side rails is a rope through the hole.

The left side is connected to the door panel, and the gap between the adjacent door panels is the rope groove on the door; The upper baffle plate, the door plate and the bottom plate closed by the cavity are extrusion cavities; the door plate and the right end of the bracket are fixedly connected with a locking device. And the size of the package can be adjusted within a certain range as needed.

What is the principle of a cardboard press machine

3. What are the characteristics of the cardboard press machine?

Here are some key features:

  • Hydraulic compaction, manual loading, manual button operation
  • Fully maintain the physical properties of the material
  • The waste compaction ratio can reach 5:1
  • Two bundling paths, easy to operate
  • Anti-rebound barbs keep compression
  • The pressure plate returns automatically

4. What is the cardboard press machine used for?

Cardboard machines are used in recycling applications. It is usually a hydraulic press that presses the material into a dense pack of a specific size. The compacted material is then tied together with wire, twine, or straps.

Cardboard presses are typically used for recyclable materials: paper and cardboard, plastic, polystyrene, cans and drums, metal and glass, although they can also be used to press unorthodox materials such as car bumpers or clothing.

They are mainly used in the commercial and industrial sectors where businesses generate this type of waste in their production/daily operations and want to dispose of them in a more sustainable way. Food production plants, hotels, supermarkets, wholesalers, warehouses, and restaurants are just a few examples of sectors where the use of strapping machines has grown exponentially over the past few years.

5. What are the advantages of a cardboard press machine?

Cardboard presses are also available in different sizes, so businesses large and small can handle waste more efficiently and enjoy the following benefits:

1) Increase portability

The baler compresses the waste into regularly shaped blocks, which are then strapped with belts. That way, collection companies can easily move them around.

2) Sustainability

All waste is recycled rather than sent to landfill, which reduces pollution and helps preserve resources.

Save Money Packing trash takes up less space and reduces trash removal costs. Also, many companies pay for recyclable materials, so balers can even be a source of income.

Health and Safety Compressed waste reduces the risk of safety hazards and creates a cleaner environment for employees.

Improve business credibility More and more consumers are demanding sustainable practices from the companies they work with. Recycling commercial waste sustainably can improve your reputation by showing that you care about your business’s environmental footprint.

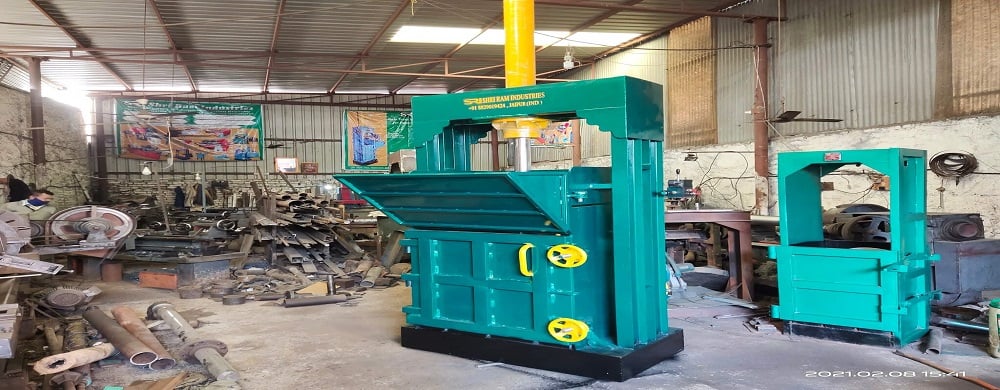

What are the advantages of a cardboard press machine

6. What are the common faults and solutions of the cardboard press?

There are some faults  and solutions below:

1) The machine is not working, but the pump is still running

  • The direction of rotation of the motor is reversed. Check the direction of rotation of the motor;
  • The motor voltage is too low to work normally under the existing load, check the voltage;
  • Check hydraulic lines for hose leaks or pinching;
  • Check the pump coupling to make sure the keyway cannot leave the pump shaft;
  • Check whether the hydraulic oil in the tank is sufficient (the liquid level should be above 1/2 of the tank volume);
  • The tank suction filter or top vent cap may be blocked;
  • Check whether the suction line fittings are loose and whether there are capillary cracks at the suction port of the pump, and the suction line should always have oil and no air bubbles;

2) The machine is running too slow

  • Something is blocking the suction filter, vent cap, or pressure filter, or the hose is clamped;
  • Low motor voltage;
  • Hydraulic oil is either thin or thick

3) Motor overheating

  • incorrect wiring;
  • The pump overheats due to a lack of oil;
  • The hydraulic oil is too thin or too thick;

4) Fuel tank leakage or fuel injection

  • A clogged vent can cause an increase in tank pressure, causing the oil to gush out. Clean or replace vents.
  • The machine is broken, the motor is broken
  • The control fuse is broken;
  • Motor starter overload trip. Press the “Reset” button on the controller;
  • The lead fuse is broken;
  • Check the transformer;
  • Check button.

7. Conclusion

The above is the introduction of the “cardboard packaging machine”. Hope the above information is helpful to you.
