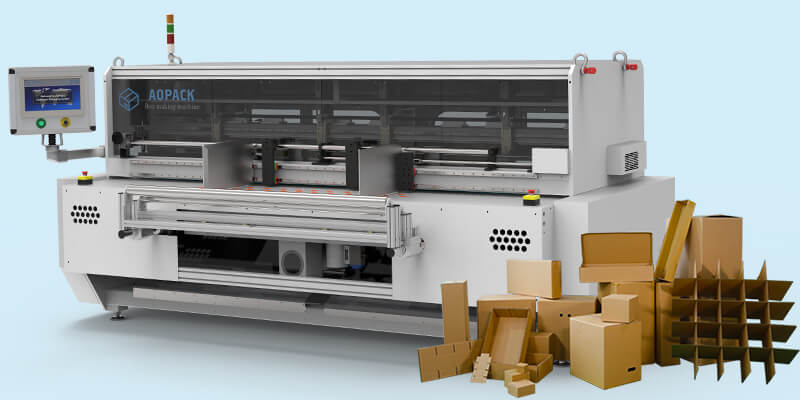

Cardboard Box Making Machine BM2508-Pro
BM2508-Pro is an innovative, versatile cardboard box making machine. It can process 150+ box styles, no mould is needed, and oversized carton boxes can be processed in one go. One BM2508-Pro cardboard box machine = 1 slitter + 1 slotter + 1 gluer + 1 sample maker. Improve production efficiency and save labour costs. Fully automatic produce customized packaging box. Specialized in scattered orders, and low to medium volume box production solutions.
Cardboard Box Machine Application
Automatic Cardboard Box Making Machine BM2508-Pro is a fully automatic carton box making machine, suitable for box plants with small quantity orders and big-size cartons, which effectively solves the problem of scattered orders.
It can also provide on-demand corrugated packaging solutions for box factories, furniture, hardware accessories, e-commerce logistics, and other industries. Customized packaging solutions can be designed and provided according to customers’ special requirements.
Standard Configuration
- 1 pcs paper feeding bracket
- 2 pcs 500mm slotting knife
- 1 pcs horizontal scoring beam
- 4 pcs vertical creasing wheels
- 4 pcs vertical slitting knives
- 1 pcs cross cutting knife
- 1 pcs handle die-cutting module
Automatic Box Making Machine BM2508-Pro Specification
| Cardboard Type | Single/Double wall | Creasing Wheel | 4 |
| Cardboard Thickness | 2-12mm | Crossing Cutting Knife | 1 |
| Cardboard Density Range | ≤1200g/m² | Power | 380V±10%，Max 8kW, 50/60Hz |
| Max. Board Size | 2500mm (W) * Unlimited length | Air Pressure | 0.6-0.7Mpa, 75L/min |
| Min. Board Size | 200(W) * 650mm (L) | Machine Size | 3610(W) * 2050(L)* 2090*(H)mm |
| Production Capacity | Appr.500-800pcs/h. Depends on Size and Box Style. |
Machine Weight | Appr. 3400kg |
| Slotting Knife | 2pc * 500mm (Length) | Handle Hole on box sides | 150mm(L)*200mm(W) |
| Slitting Knife | 4 (with knife sharpening function) | Box Styles | 150+ |
| The above parameters are for reference only. And the final right of interpretation belongs to Aopack Ltd. |
|||
Major Functions Of Automatic Box Making Machine BM2508-Pro
Automatic Box Making Machine BM2508-Pro Workflow
More than 100 box styles for your choice
Automatic Box Making Machine Manufacturer FAQ
