Corrugated Box Maker with Digital Printing

A corrugated box maker is a packaging machine designed to convert corrugated cardboard sheets into finished boxes through processes such as slotting, creasing, slitting, and gluing. The BM2800-Ultra enhances this process by integrating digital printing and automation into one system.

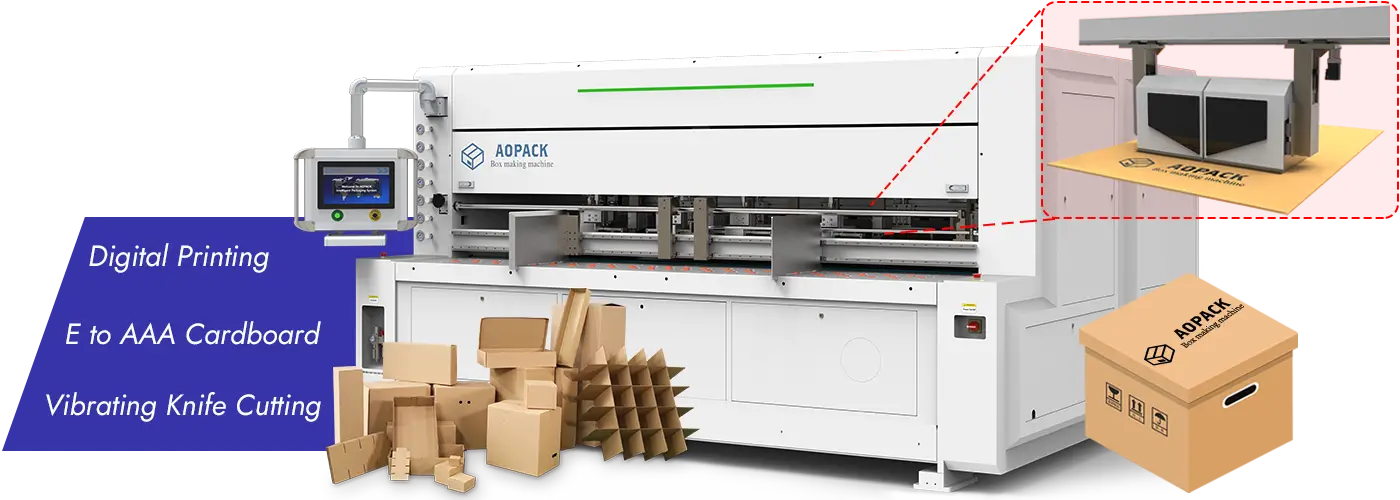

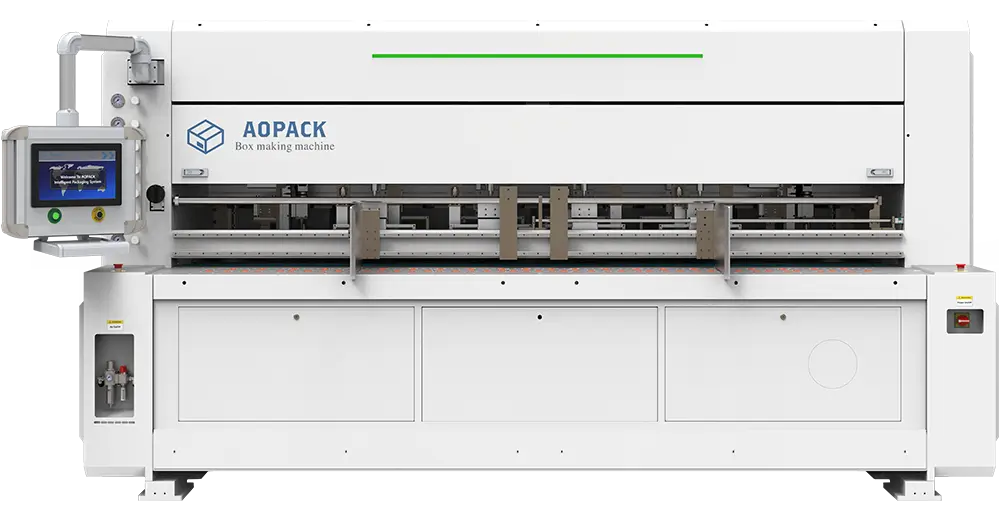

The BM2800-Ultra corrugated box maker is our latest innovation and flagship model, engineered to redefine efficiency in corrugated box production. This advanced system integrates digital printing, slotting, slitting, creasing, vibrating knife cutting, and glue spraying into a single compact machine.

To further enhance automation, the BM2800-Ultra corrugated box maker digital printer can be equipped with an automatic feeding system and an automatic box collecting system, enabling a fully automated workflow from corrugated board input to finished box output.

Designed for maximum flexibility, the machine requires no molds and no highly skilled operators. Its intelligent system automatically adjusts module positions based on box size and design, significantly reducing labor costs while improving production efficiency.

As a result, the BM2800-Ultra is a world-leading solution for handling short-run, on-demand, multi-size, and multi-style corrugated box orders, making it ideal for modern packaging businesses seeking flexibility and speed.

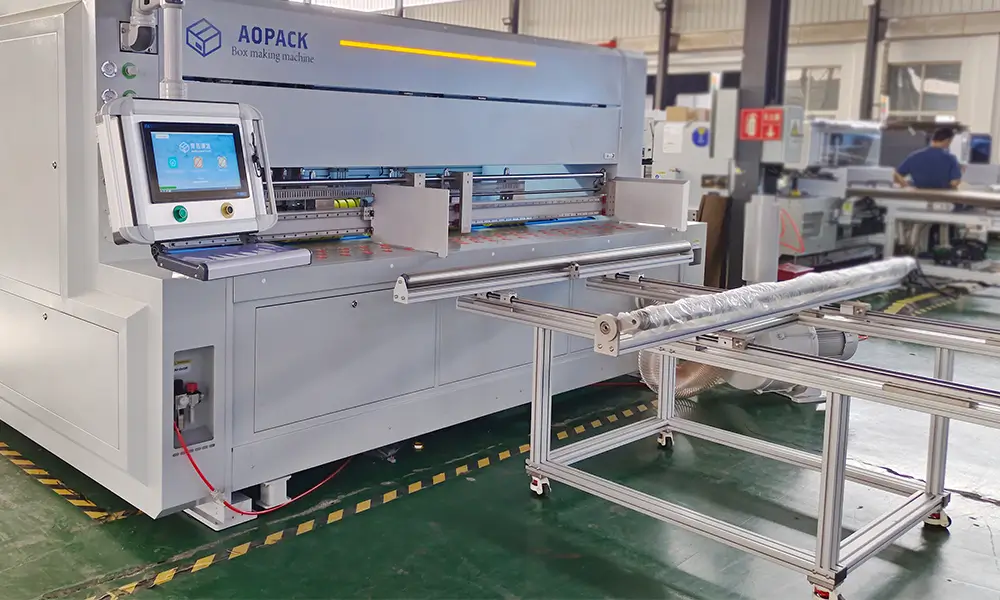

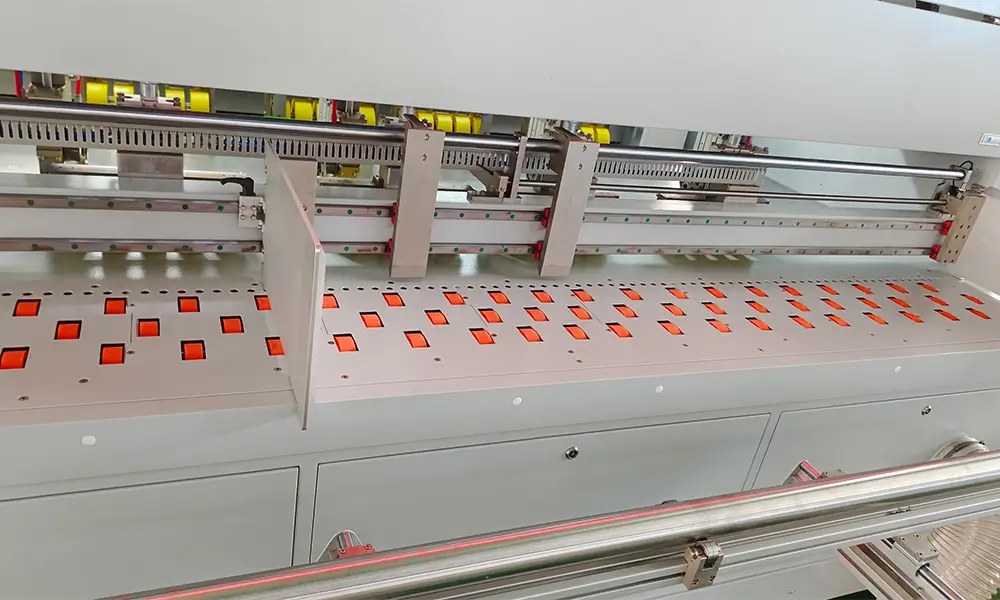

The BM2800-Ultra corrugated box maker is equipped with a standard manual feeding system. Operators simply place corrugated sheets into the feeding area manually, and the machine uses a powerful vacuum suction system to automatically feed sheets into production.
The vacuum suction zone measures 2800mm in length, providing strong and consistent adsorption even for warped or bent cardboard, ensuring smooth feeding and minimizing downtime.

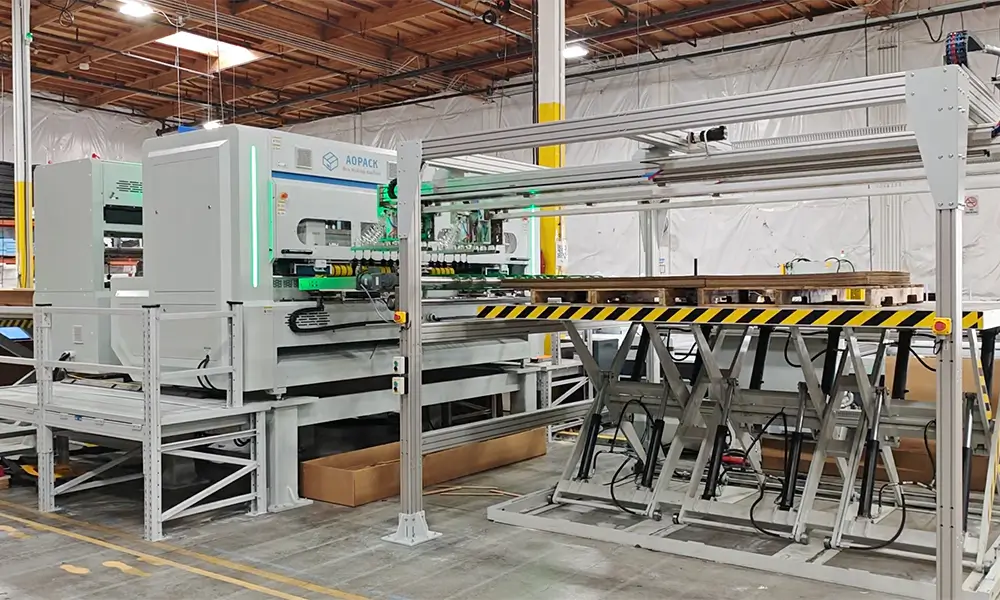

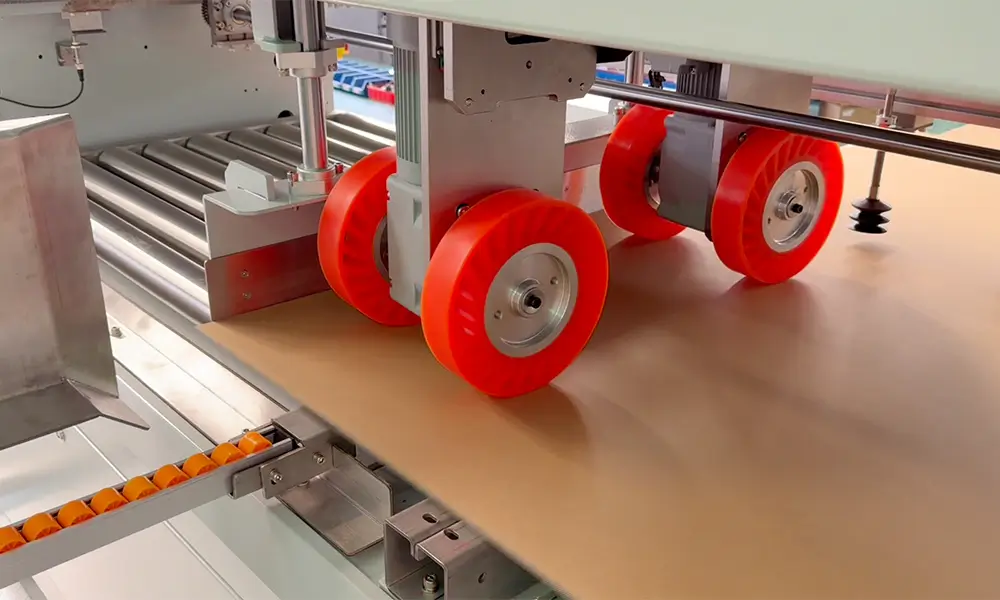

For higher efficiency and labor savings, the BM2800-Ultra corrugated box maker  supports an optional fully automatic cardboard feeding and box collecting system.

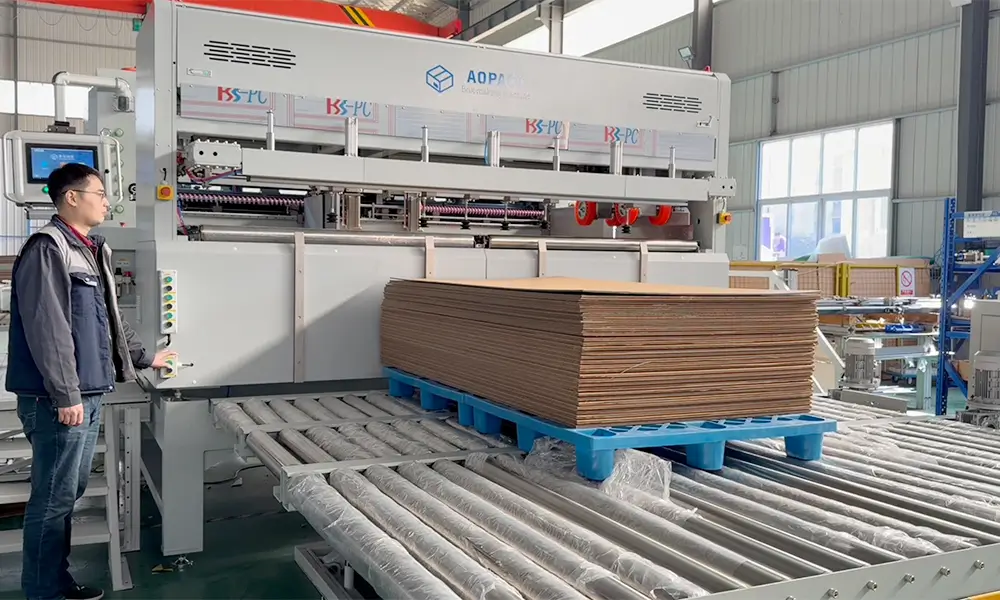

With this system, workers only need to place pallets of cardboard sheets onto the platform using a forklift. The machine will then automatically feed sheets continuously, process them into finished boxes, and neatly auto-stack the finished cartons without manual intervention. This greatly reduces labor intensity, improves production continuity, and keeps stacking tidy and orderly.

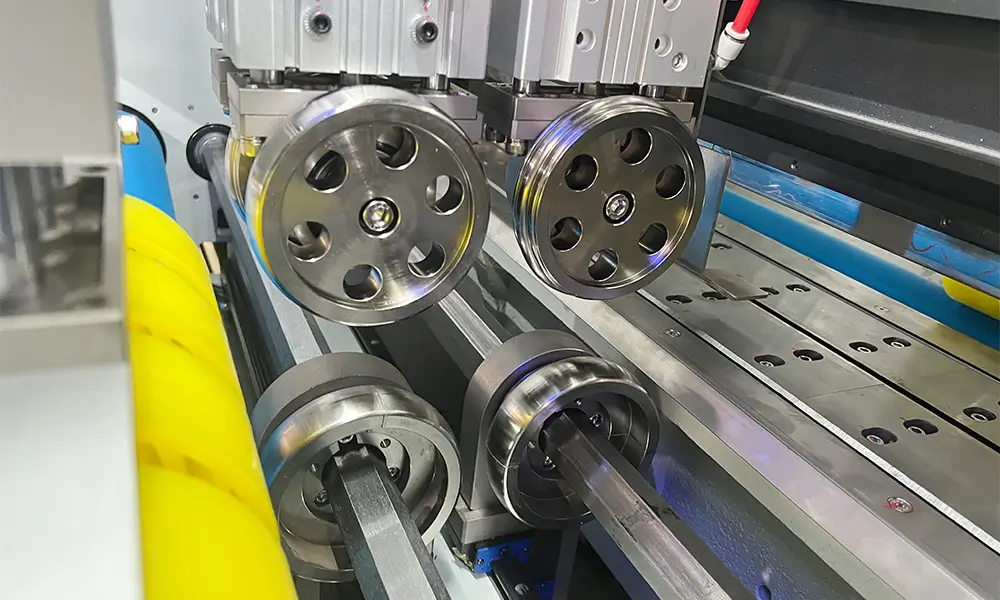

The BM2800-Ultra box making machine comes standard with 4 pre-creasing wheels and 4 creasing wheels, supporting up to 8 longitudinal creasing lines. The two rows of creasing wheels allow for a minimum 1mm distance between creases.
The pre-creasing function pre-flattens the creasing area on heavy-duty cardboard, effectively avoiding crease bursts or cracks during folding.

1. Equipped with advanced male-female creasing technology, the machine forms creases on both the outer liner and inner liner sides of the board.
Carton flaps can be folded inward and outward smoothly without burst. It effectively prevents surface cracking and ensures clean, crisp folds.

Pre-creasing & Creasing Wheels

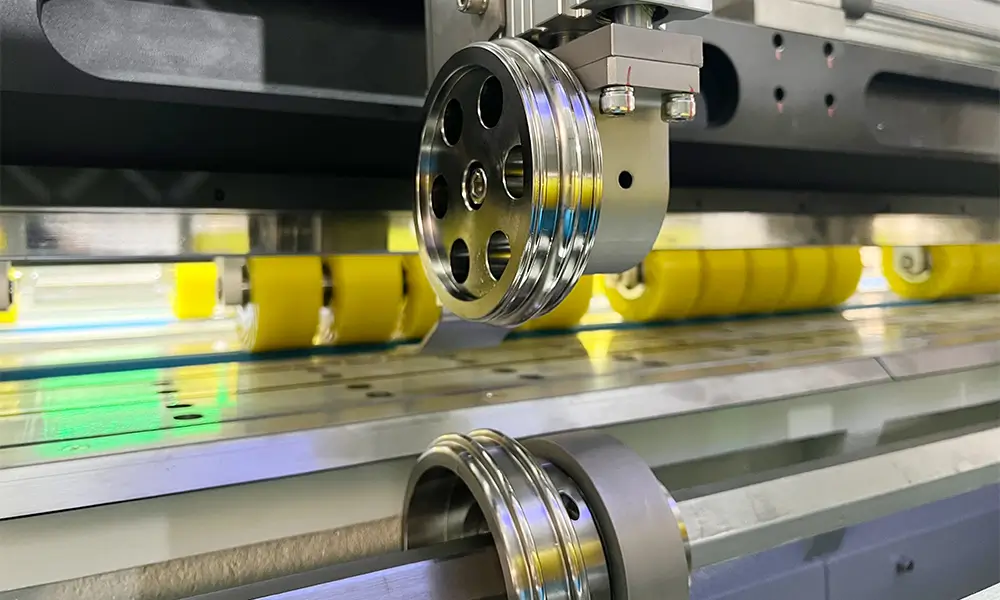

Male Female Creasing Wheels

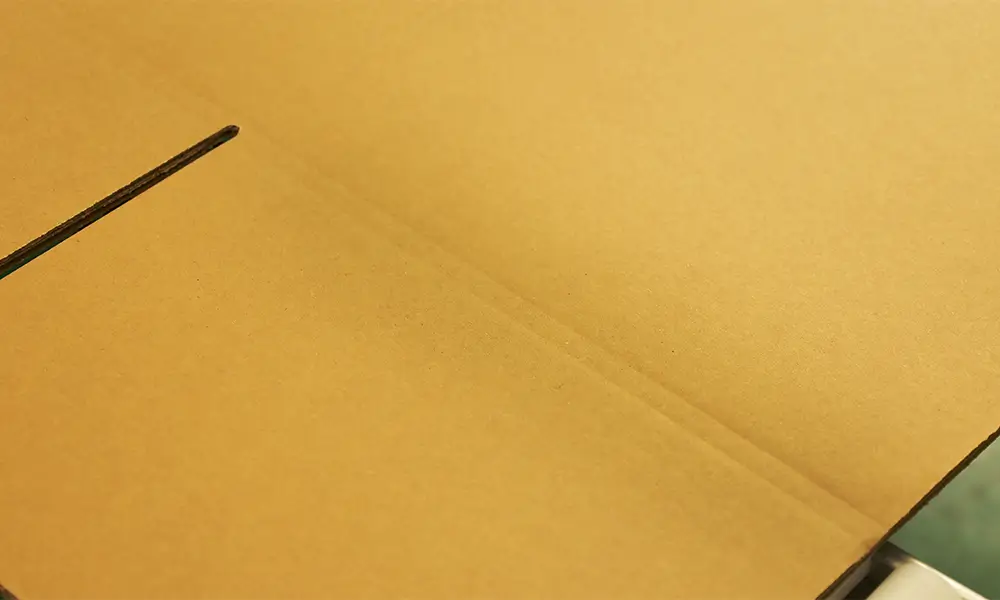

Creasing Line on Outer Liner

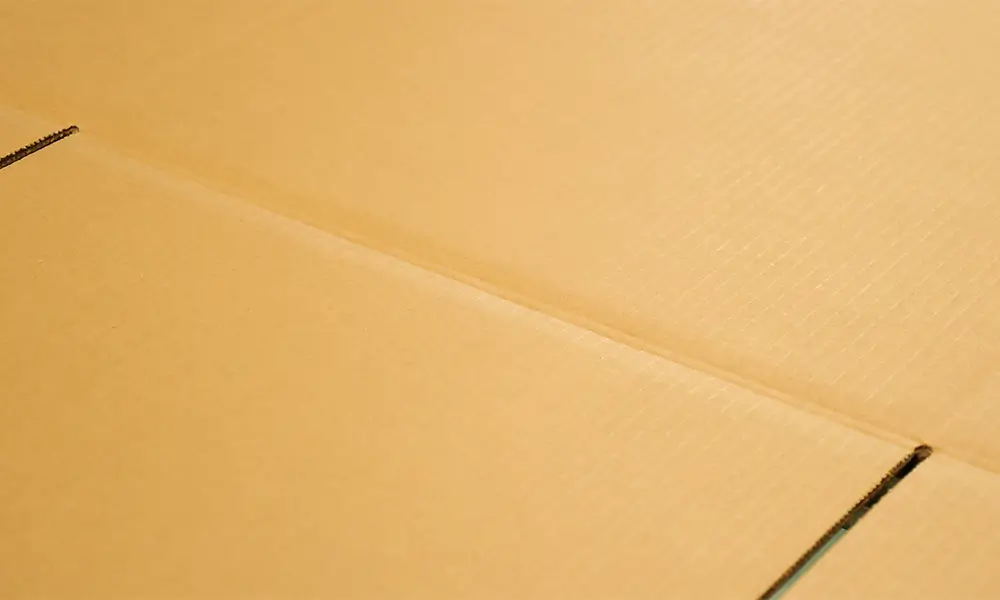

Creasing Line on Inner Liner

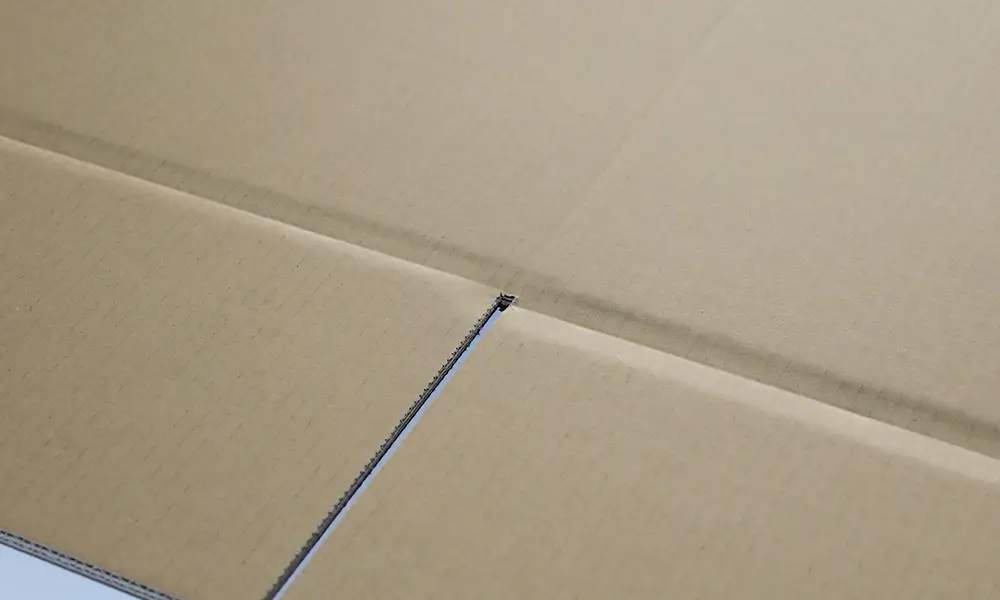

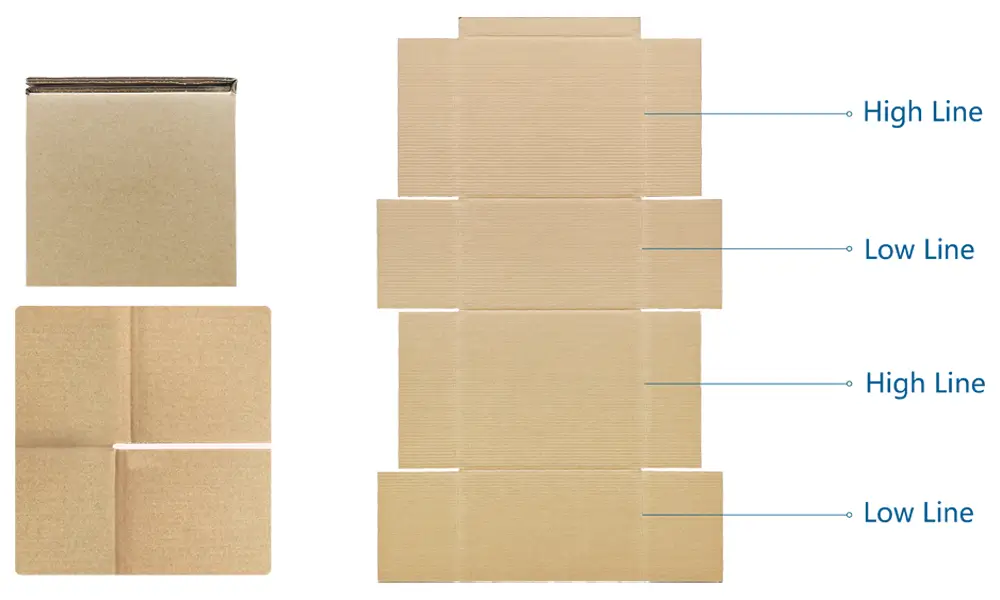

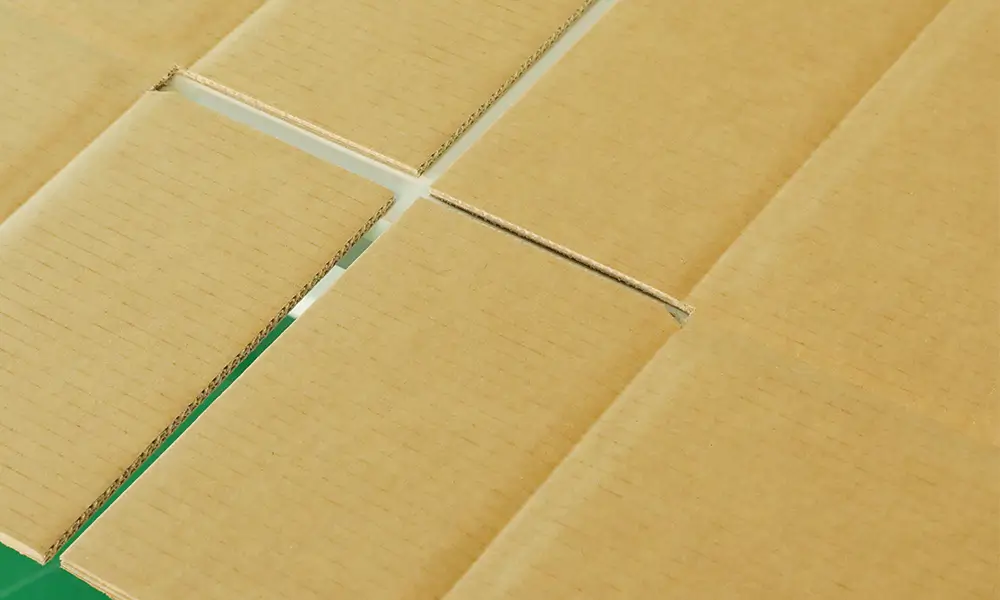

2. Inconsistent creasing line (offset crease) is specially designed for high-strength corrugated board.
Offset creasing is crucial for creating high-quality folds in double-wall or heavy-duty corrugated board. It prevents surface cracking and ensures a clean 90° or 180° bend, avoiding improper folding or damage to the finished carton.

Standard 500mm slotting knife, Max. slotting length is 3 times length of slotting knife. With optional 250mm slotting knife, the max. scoring length(box height) is 2800mm.

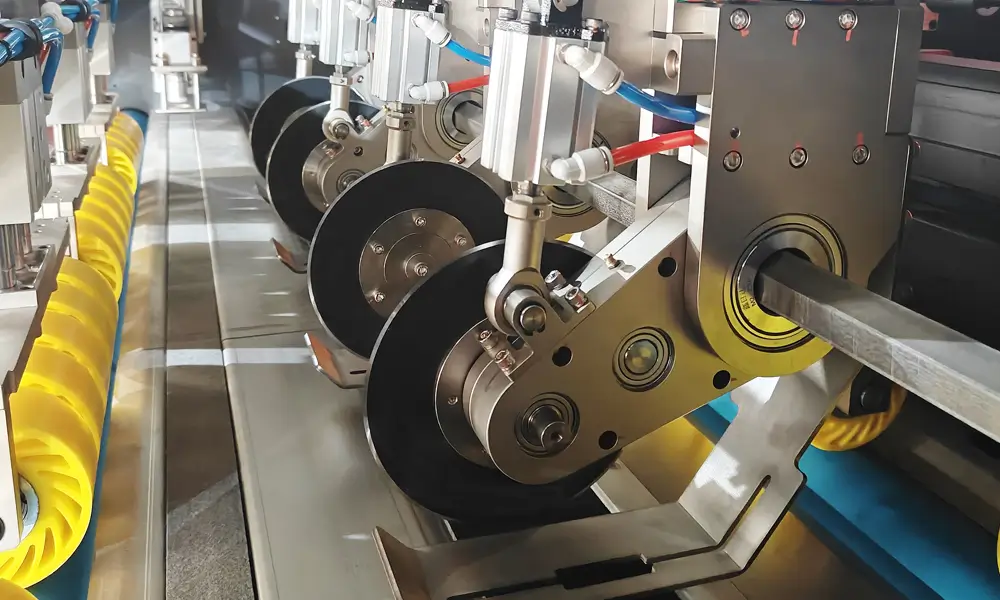

4 vertical slitting knives can cut 2-30mm corrugated cardboard. Tungsten steel slitting knives driven by independent motors.

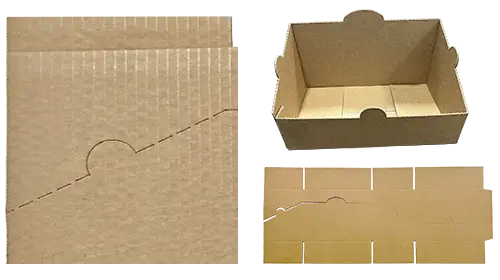

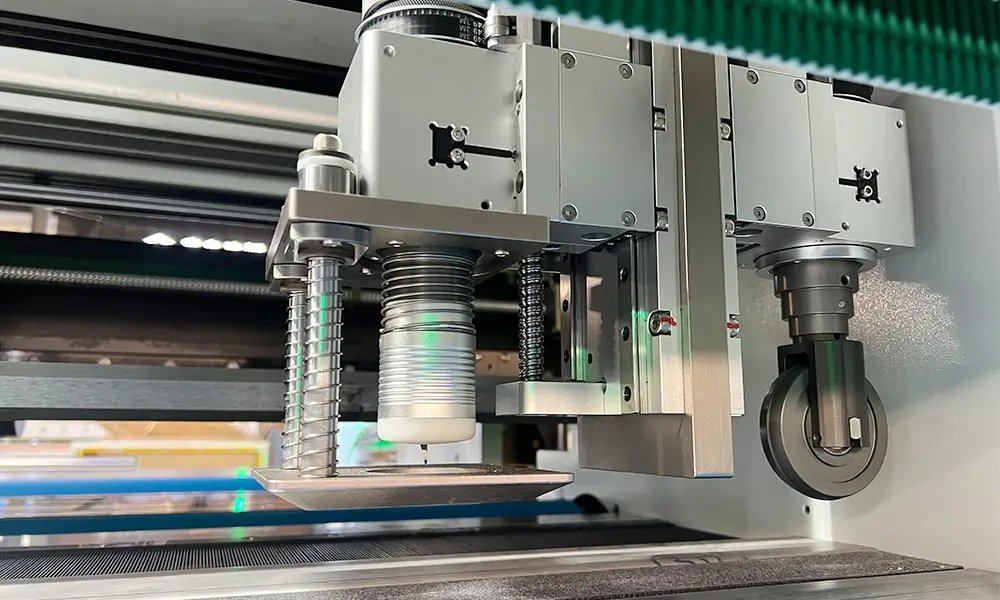

Available to crease and crease circles, rectangles, slashes, curves, and other Irregular lines. No mold needed.

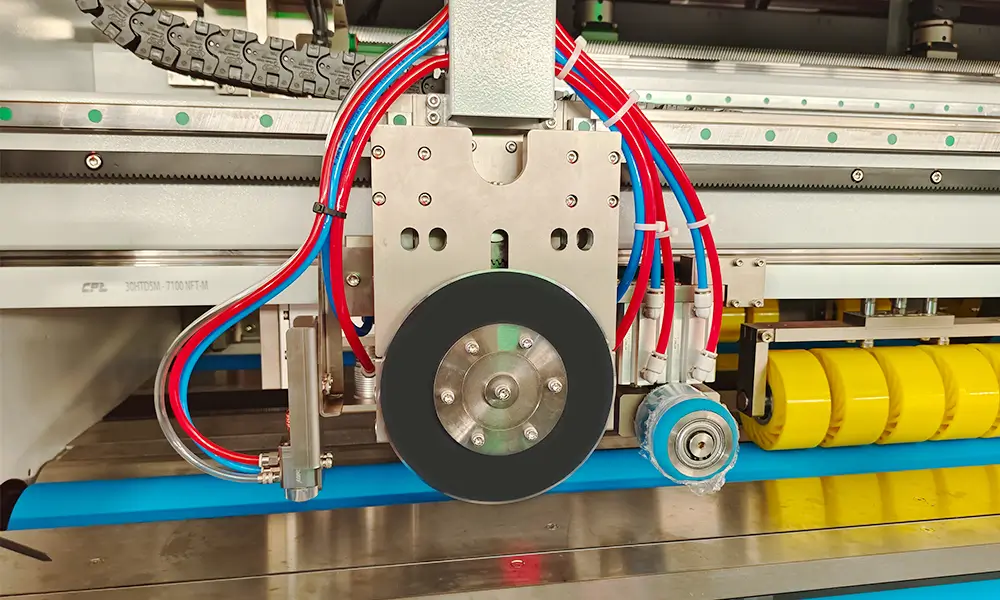

Cut off excess cardboard without using an additional paper separator. Inline Cold Gluing function and glue flap crushing function.

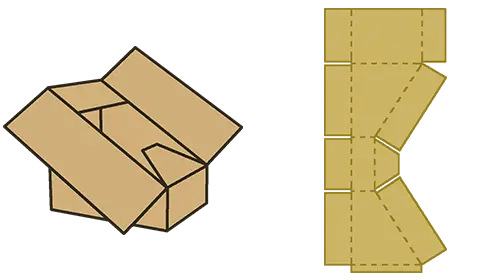

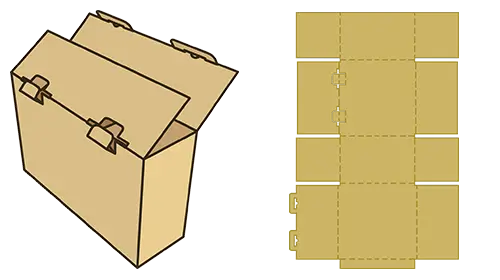

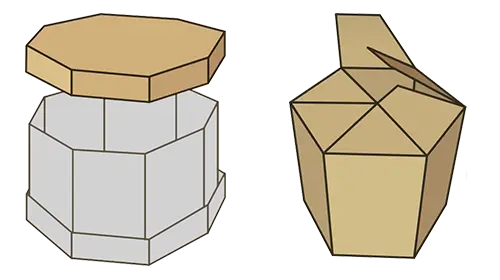

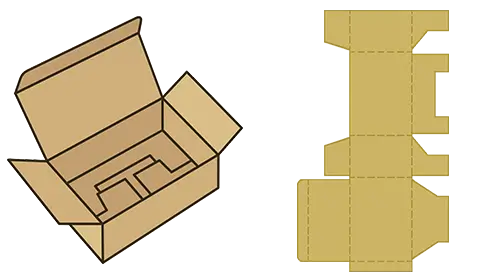

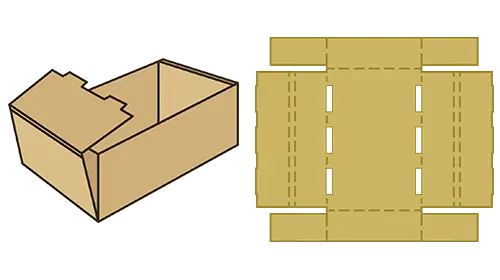

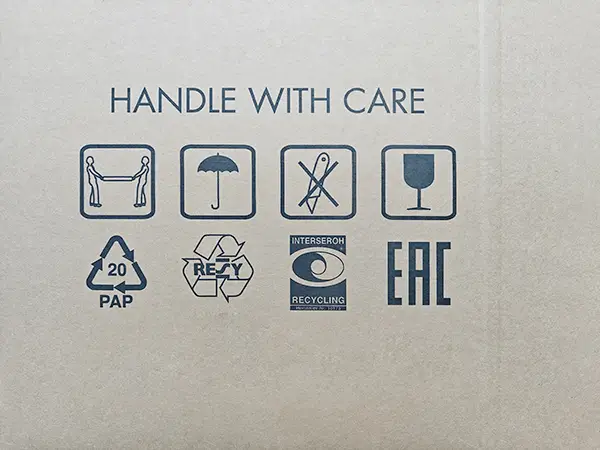

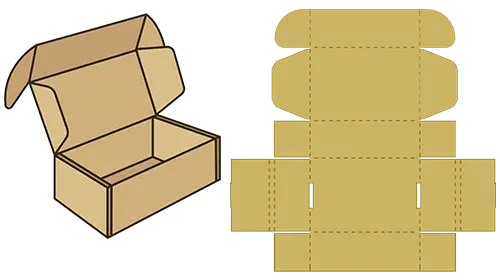

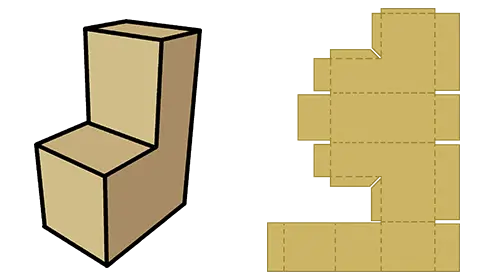

The BM2800-Ultra digital box making machine unlocks total freedom for custom packaging design and manufacturing. With support for more than 150 box designs and styles, it produces standard RSC cartons, complex-shaped boxes, and high-mix low-volume custom packaging efficiently. This versatile corrugated box making machine is built to fit your products perfectly.

The BM2800-Ultra stands as our most full-featured box making machine and one of the most technologically advanced box making machines in the world.

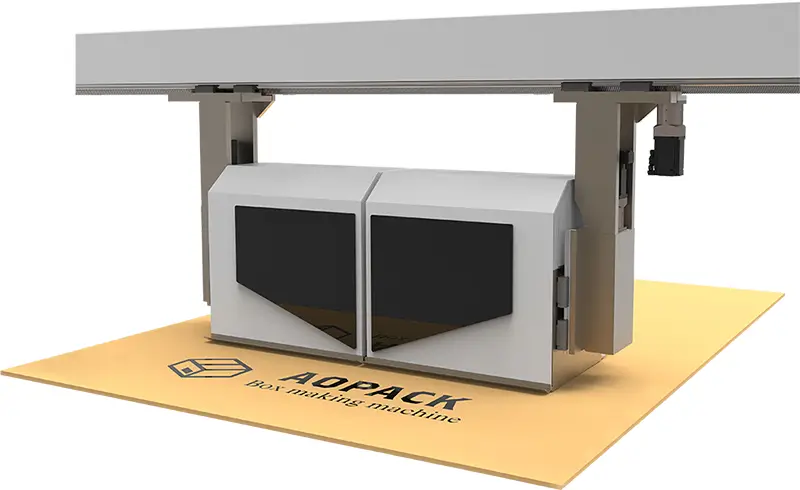

Its signature capability lies in the all-in-one integration of digital printing with box slitting, creasing, slotting, glue spraying, and vibrating knife cutting. A single machine accomplishes what previously required five separate machines, streamlining production workflows, boosting productivity, and lowering overall production costs.
It is ideal for corrugated box factories, automotive parts manufacturers, furniture factories, curtain workshops, picture frame businesses, handicraft producers, custom product manufacturers, and any operation handling scattered orders, multi-size runs, and diverse box styles.
The BM2800-Ultra is simply the best solution for small to medium batch corrugated box production. This makes the BM2800-Ultra ideal for companies in the corrugated packaging industry and modern box manufacturing environments.
