Box Making Machine Manufacturer for Corrugated Packaging
AOPACK is a professional box making machine manufacturer specializing in automated, mould-free solutions for corrugated packaging production. Our box making machines enable short run on-demand production of customized cardboard boxes without traditional cutting dies or long setup times. AOPACK machines help for U.S. and global corrugated packaging manufacturers reduce labor costs, minimize inventory pressure, and respond faster to market demands.
What Is a Box Making Machine?
A box making machine is an automated system designed to produce corrugated and cardboard boxes directly from sheets, without the need for traditional cutting moulds.
Unlike conventional die-cutting and folder-gluer lines, Aopack box making machine integrates slitting, cutting, creasing, slotting, printing, and gluing into one streamlined process.
This technology allows packaging manufacturers to instantly adjust box sizes, produce irregular shapes, and efficiently handle short-run or customized orders. As a result, box making machines are widely used in e-commerce, logistics, and industrial packaging applications.
AOPACK box making machines are widely adopted by corrugated packaging manufacturers throughout the United States, supporting short-run, customized, and on-demand box production.
Why Choose AOPACK Box Making Machine
Our box making machines are widely adopted by manufacturers serving the North American, European and global markets, with flexible configurations and fast technical support.
Vibrating Knife Digital Cutting With Creasing Tools
Irregular Shapes Hinged Lid Box Types
Vertical Pre-creasing and Creasing Wheels

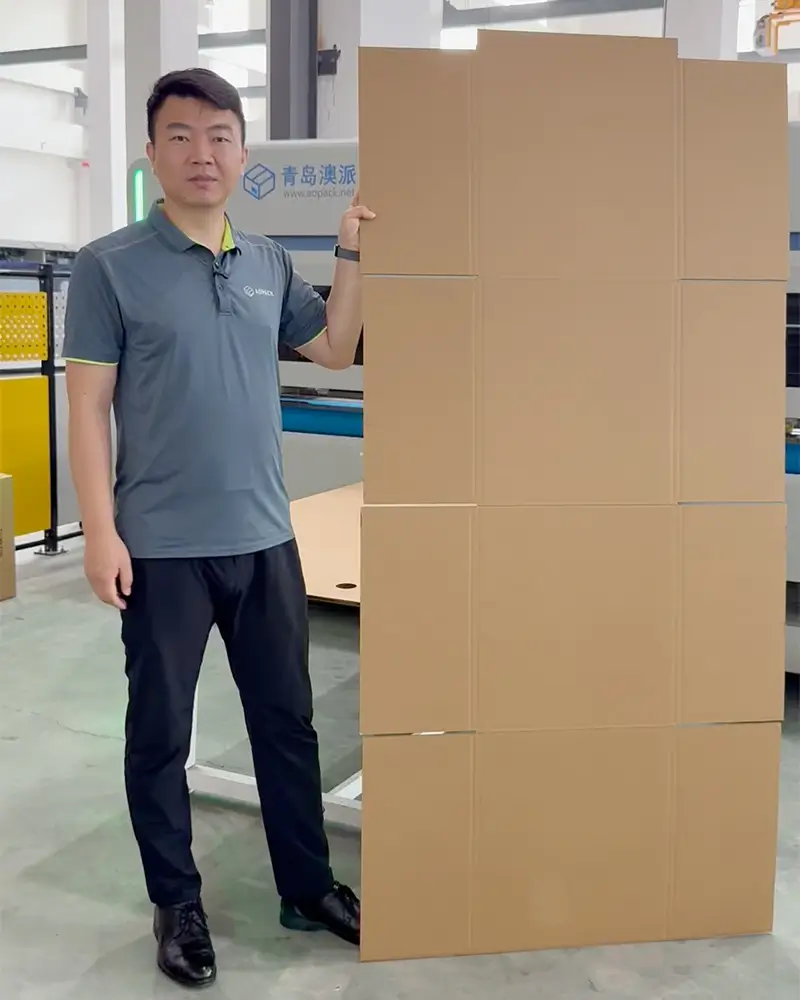

E to AAA Corrugated Flute, Inconsistent Creasing
AOPACK Box Making Machine Models

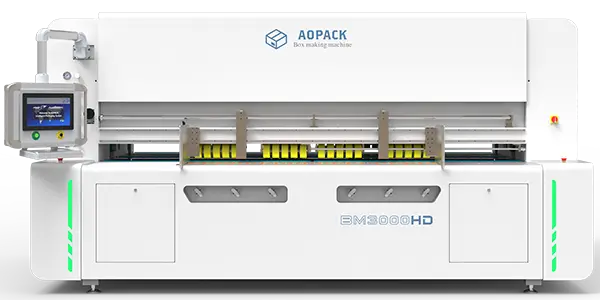

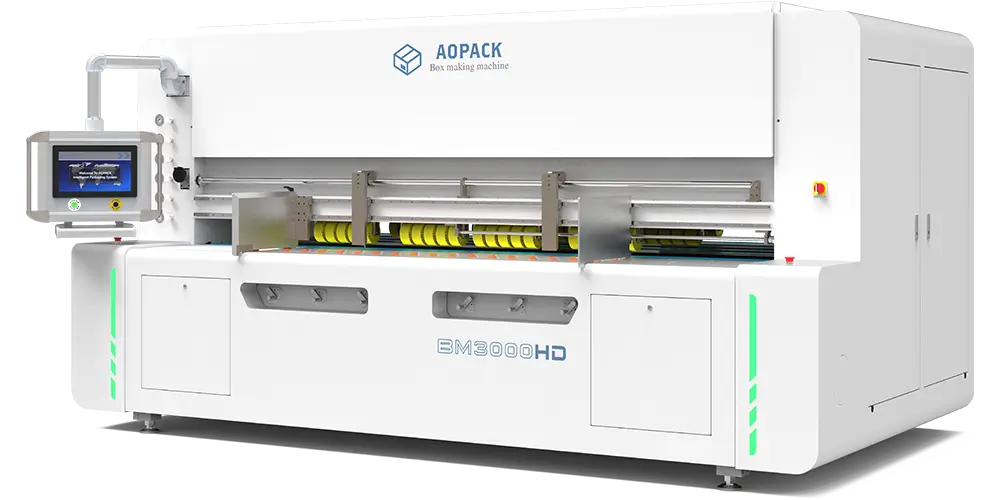

Industrial-grade box maker with wide board capacity and fine crease precision.
- Feeding width: 3000 mm
- Min. crease: 5 mm
- E–AAA flute support
Economic high-capacity model for large carton production.
- Feeding width: 2800 mm
- Min. crease: 25 mm
- Double-side creasing, large box support
Versatile machine with wide optional functions. Single Pass, Short Run, On Demand
- Feeding width:2500 mm
- Min. crease: 30 mm
- Handles 90%+ common cartons
BM1800-Mini Box Making Machine
Compact and cost-efficient machine for small operations.
- Feeding width:1800 mm
- Space-saving design
Optimized for fanfold cardboard production. Max. 6 different fanfold sheets
- Feeding width: 2800 mm
- Auto sizing for reduced waste
Hot melt adhesive machine with wide gluing area.
- Gluing width: 200 mm+
- Immediate bonding, no wait
Optional Functions Availability:
| BM3000-HD | BM2800-Max | BM2508-Pro | BM1800-Mini | FF2800 | |
| Vibrating Knife Cutting | ✔ | ✔ | ✔ | ✔ | |
| Creasing Tools for Vibrating Knife | ✔ | ✔ | ✔ | ✔ | |
| Gluing System | ✔ | ✔ | ✔ | ✔ | ✔ |
| Flexo Printing System | ✔ | ✔ | ✔ | ||
| Auto Feeding & Palletizing | ✔ | ✔ | ✔ | ✔ | |
| Fanfold Cardboard Feeding | For limited box types | For limited box types | ✔ | ||
| QR Code Scanning | ✔ | ✔ | ✔ | ✔ | ✔ |
| 3D Scanning Table | ✔ | ✔ | ✔ | ✔ | ✔ |
Internal box making machine comparison:
| BM3000-HD | BM2800-Max | BM2508-Pro | BM1800-Mini | ||
| Cardboard | Cardboard Type | Single / Double / Triple Wall (AAA Cardboard) | Single / Double Wall | Single / Double Wall | Single / Double Wall |
| Min. Size | 300×660mm | 260×680mm | 200×650mm | 140×600mm | |
| Max. Size | 3000mm(W)×Unlimited Length | 2800mm(W)× Unlimited Length | 2500mm(W)× Unlimited Length | 1800mm(W)× Unlimited Length | |
| Thickness | 2~16mm | 2~10mm | 2~12mm | 2~12mm | |
| Weight | ≤2400g/m² | ≤1200g/m² | ≤1200g/m² | ≤1400g/m² | |
| Processing Method | Outer Liner Facing Down | Outer Liner Facing Down | Outer Liner Facing Down | Outer Liner Facing Down | |
| Slotting / Scoring | Standard Slotting Knife | 500mm | 500mm | 500mm | 350mm |
| Slotting Width | 7~21mm | 7mm | 7mm | 7mm | |
| Max. Scoring Length | 2000mm | 2500mm | 1700mm | 1650mm | |
| Vertical Creasing | Min. Distance | 5mm – 150mm – 5mm | 60mm-25mm-105mm-25mm-60mm | 30mm – 150mm – 30mm | 60mm-25mm-105mm-25mm-60mm |
| Inconsistent Creasing | √ | √ | √ | √ | |
| Creasing Wheel Qty | 4 | 6 | 4 | 6 | |
| Pre-Creasing Wheel | 4 | / | / | / | |
| Vertical Slitting | Min. Distance | 40mm – 120mm – 40mm | 60mm-25mm-105mm-25mm-60mm | 40mm – 120mm – 40mm | 60mm-25mm-105mm-25mm-60mm |
| Slitting Knife Qty | 4 | 6 | 4 | 6 | |
| Handle-Hole Die Cutting | Max. Mould Size | 200×150mm | / | 200×150mm | 120*120mm (Option) |
| Finished Box Size | Min. Size | 50(L)×50(W)×50mm(H) | 50(L)×50(W)×110mm(H) | 50(L)×50(W)×50mm(H) | 50(L)×50(W)×110mm(H) |
| Max. Size | H+B≤3000, Unlimited Length | H+B≤2800,Unlimited Length | H+B≤2500,Unlimited Length | H+B≤1800,Unlimited Length | |
| Machine Data | Size | 3820(W) * 2060(L)*1970mm(H) | 3760(W) * 1700(L)*2030mm(H) | 3610(W) * 2050(L)* 2090mm(H) | 2500(W) * 1500(L)* 2030mm(H) |
| Weight (Approx.) | 4500kg | 3200kg | 3400kg | 1848kg | |
| Compressed Air | 0.6-0.7MPa, 90L/Min | 0.6-0.7MPa, 75L/Min | 0.6-0.7MPa, 75L/Min | 0.6-0.7MPa, 50L/Min | |
| Power | 380V±10%,Max.10kW | 380V±10%,Max.8kW | 380V±10%,Max.8kW | 380V±10%,Max.7kW | |
Automatic Box Making Machine Manufacturer
AOPACK focuses on corrugated box making slolutions and has developed a series of box making machines with our own patents. All the processes are in our control, which includes the research and development, production, sales, and after-sales service.
We provide packaging solutions for customers who need small quantity box orders quickly with any size box, also we can design the most suitable solution according to customers’ special requirements.
Contact AOPACK to discuss your box making machine requirements for the U.S., European and global market.
Automated Box Making Solutions in Real Production
AOPACK box making machines can be integrated with auto feeding and box stacking systems to achieve higher production automation and reduced labor requirements.
Learn more: Automated Box Making Solution Installed in the USA
Custom Corrugated Boxes Solutions
Automatic Box Making Machine Recent Projects

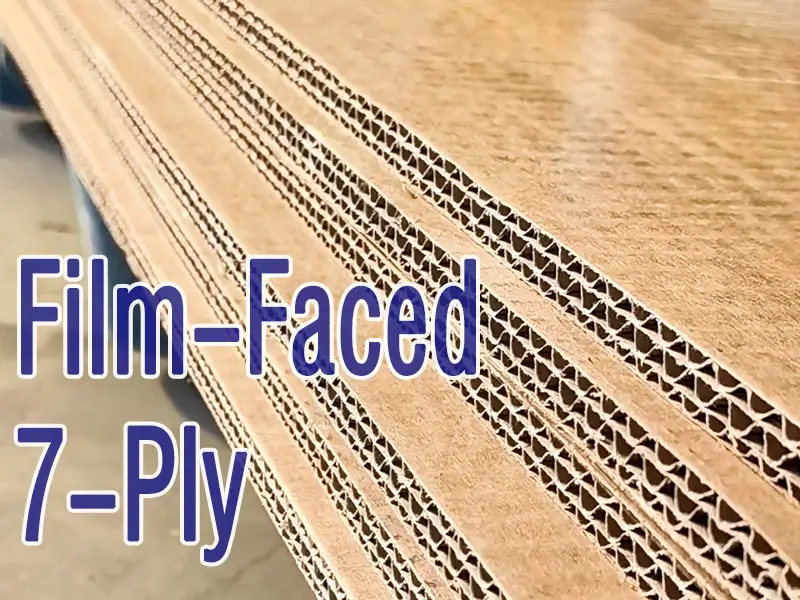

BM2800-Max Box Making Machine for Film-Faced 7-Ply Corrugated Cardboard
The Challenge: Producing Film-Faced Multi-Wall Corrugated Boxes in Small Volumes Many corrugated box manufacturers receive ...

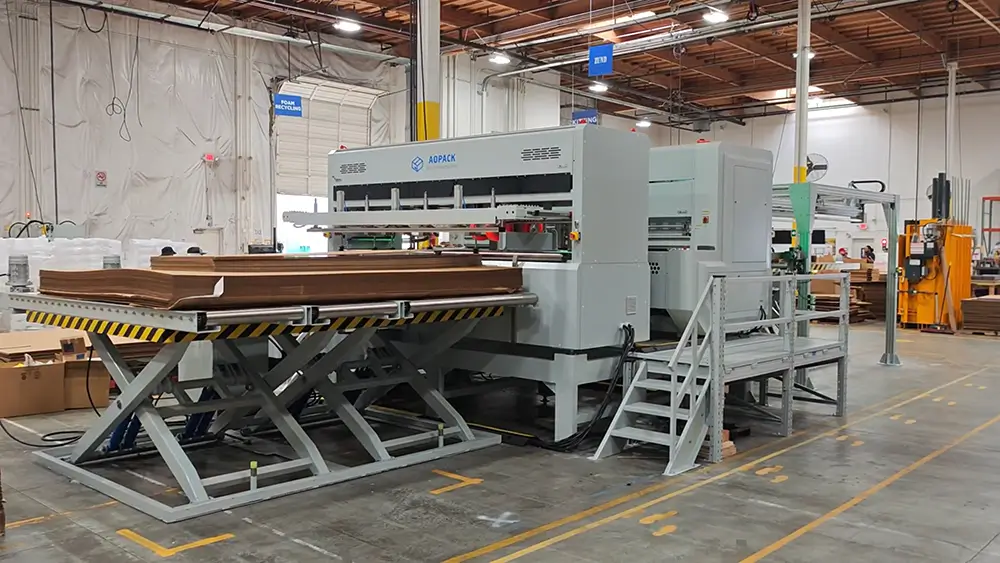

Automated Box Production in the U.S.: AOPACK Auto Feeding & Auto Stacking System in Real Operation
As corrugated packaging manufacturers pursue higher efficiency and lower labor dependency, automation has become a ...
U.S. Packaging Facility Expands with BM3000-HD Box Making Machines
[Mount Vernon, IL ] — January 6, 2026 — A U.S.-based corrugated packaging manufacturer has enhanced ...
Meet AOPACK Worldwide
AOPACK box making machines are presented globally at major packaging and printing exhibitions, allowing customers to see real production demonstrations and discuss customized solutions. See AOPACK at International Trade Shows
